Fast Actuation Metal Sheet Grippers For Power Press Sheet Metals
| Place of Origin | Nanjing City, China |
|---|---|
| Brand Name | BRISK |
| Model Number | Transfer Die Stamping |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Strong carbon box, wooden cases. According to your requirements. |
| Delivery Time | 2-10 days |
| Payment Terms | T/T, L/C, , MoneyGram |
| Supply Ability | 300 + Piece + per Months |
Product Details
| Product Name | Transfer Die Stamping | Material | Aluminum / Steel |
|---|---|---|---|
| Masse | 0.44 Kg | Air Ports | G 1 / 4 |
| Clamping Force | 650.0 N (at 5 Bar) | Operating Pressure | Max. 6.0 Bar |
| High Light | fitted sheet grippers,progressive tooling system |
||
Product Description

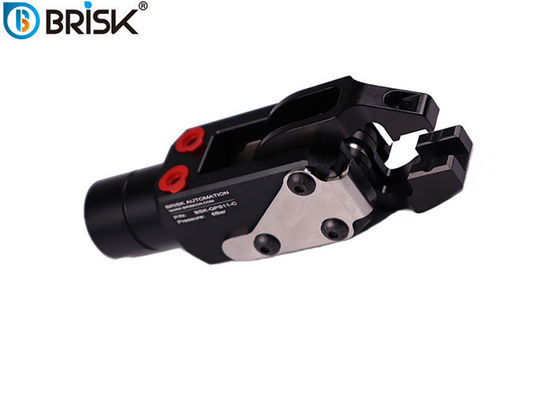

High Security Operating Pneumatic Gripper for Transfer Tooling
Fast actuation transfer dies stamping for power press sheet metals are run on compressed air and have the ability to pick up, place, hold and release objects while an action is being executed.
The modular design could save assembly hours. Long life cycle, best price, and flexible industrial assembly make transfer grippers the best one available.
Transfer grippers could save assembly hours.
| Item No. | BSK-GPS11-A |
| Features | 5 million cycles |
| Sensor position available | |
| Modular structure | |
| High clamping force | |
| Easy adjustment | |
| Fast opening & closing action | |
| Self-locking structure for clamping | |
| Applications | Holding, removing and transporting of metal sheets and other products, mainly for automation stamping. |
Advantage:
long life, high clamp force, modular designed jaw tips are available. Best design, best price, and best delivery make the Brisk grippers the best workholding clamp available.
