Product Details
Place of Origin: Nanjing City, China
Brand Name: BRISK
Model Number: Stamping Gripper
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong carbon box, wooden cases. According to your requirements.
Delivery Time: 2-10 days
Payment Terms: T/T, L/C, , MoneyGram
Supply Ability: 300 + Piece + per Months
Product Name: |
Stamping Gripper |
Material: |
Aluminum / Steel |
Masse: |
0.44 Kg |
Air Ports: |
G 1 / 4 |
Clamping Force: |
650.0 N (at 5 Bar) |
Operating Pressure: |
Max. 6.0 Bar |
Product Name: |
Stamping Gripper |
Material: |
Aluminum / Steel |
Masse: |
0.44 Kg |
Air Ports: |
G 1 / 4 |
Clamping Force: |
650.0 N (at 5 Bar) |
Operating Pressure: |
Max. 6.0 Bar |

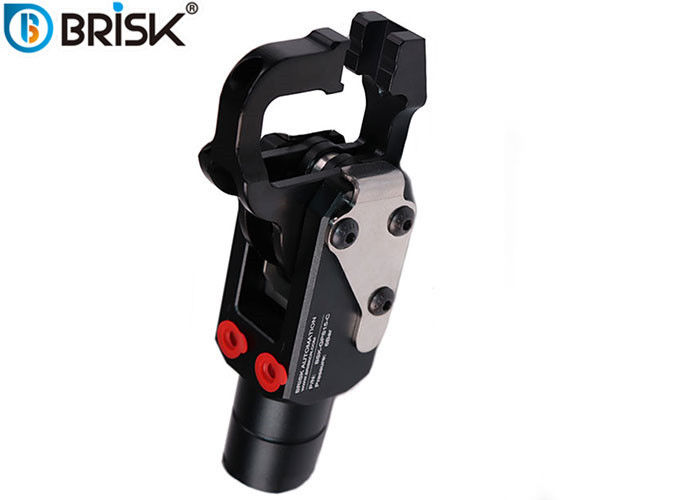

Air operated clamping fixture stamping gripper for transfer die is run on compressed air and have the ability to pick up, place, hold and release objects while an action is being executed. Modular design could save assembly hours. Long life cycle, best price and flexible industrial assembly make Brisk grippers the best one available. Stamping gripper could save assembly hours.
| Item No. | Stamping gripper |
| Features | 5 million cycles |
| Sensor position available | |
| Modular structure | |
| High clamping force | |
| Easy adjustment | |
| Fast opening & closing action | |
| Self-locking structure for clamping | |
| Applications | Holding, removing and transporting of metal sheets and other products, mainly for transfer die. |
Advantages
Air Operated Clamping Fixture Stamping Gripper For Transfer Die
| Brisk concentrate on - stamping gripper | |
| 5 million times strict testing for grippers and high security operating | |
| the most cost-effective-30% saving at least | |
| 3-7 days delivery on most products | |
| 96 kinds of standard models of transfer tooling | |
| 190 kinds of standard models of adapters | |
| 20 new products per year | |
| Customized solutions |
