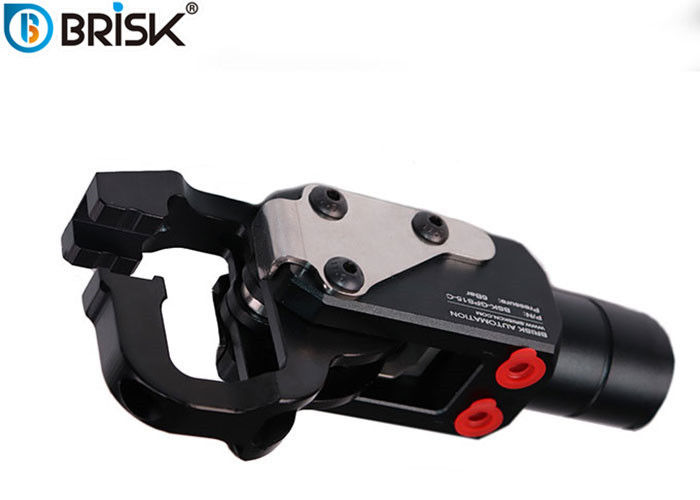

Pneumatic Cam Type Stamping Gripper 5 Million Cycles With Angular Opening

Name: Pneumatic Cam Type Stamping Gripper 5 Million Cycles With Angular Opening
Brand: Nanjing Brisk Metal Technology Co., Ltd.
SKU: Stamping Gripper
Availability: InStock

Product Details

Place of Origin: Nanjing City, China

Brand Name: BRISK

Model Number: Stamping Gripper

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Strong carbon box, wooden cases. According to your requirements.

Delivery Time: 2-10 days

Payment Terms: T/T, L/C, , MoneyGram

Supply Ability: 300 + Piece + per Months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                pneumatic automation components, pneumatic holding gripper


Product Name:	Stamping Gripper	Material:	Aluminum / Steel
Masse:	0.44 Kg	Air Ports:	G 1 / 4
Clamping Force:	650.0 N (at 5 Bar)	Operating Pressure:	Max. 6.0 Bar

Product Name:	Stamping Gripper
Material:	Aluminum / Steel
Masse:	0.44 Kg
Air Ports:	G 1 / 4
Clamping Force:	650.0 N (at 5 Bar)
Operating Pressure:	Max. 6.0 Bar

Pneumatic Cam Type Stamping Gripper 5 Million Cycles With Angular Opening

Pneumatic Cam Type Stamping Gripper With Angular Opening For Auto Parts

Pneumatic cam type stamping gripper with angular opening for auto parts is run on compressed air and have the ability to pick up, place, hold and release objects while an action is being executed. Modular design could save assembly hours. Long life cycle, best price and flexible industrial assembly make Brisk grippers the best one available. Stamping gripper could save assembly hours.

Item No.	Stamping gripper
Features	5 million cycles
	Sensor position available
	Modular structure
	High clamping force
	Easy adjustment
	Fast opening & closing action
	Self-locking structure for clamping
Applications	Holding, removing and transporting of metal sheets and other products, mainly for transfer press tooling

Advantages

Pneumatic Cam Type Stamping Gripper With Angular Opening For Auto Parts

Brisk concentrate on - stamping gripper
5 million times strict testing for grippers and high security operating
the most cost-effective-30% saving at least
3-7 days delivery on most products
96 kinds of standard models of transfer tooling
190 kinds of standard models of adapters
20 new products per year
Customized solutions
