Pneumatic Air Power Press Tooling , Fitted Sheet Grippers 5 Million Cycles

Product Details

Place of Origin: Nanjing City, China

Brand Name: BRISK

Model Number: Transfer Die Stamping

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Strong carbon box, wooden cases. According to your requirements.

Delivery Time: 2-10 days

Payment Terms: T/T, L/C, , MoneyGram

Supply Ability: 300 + Piece + per Months

Get Best Price
High Light:

fitted sheet grippers

,

progressive tooling systems

Product Name:
Transfer Die Stamping
Material:
Aluminum / Steel
Masse:
0.44 Kg
Air Ports:
G 1 / 4
Clamping Force:
650.0 N (at 5 Bar)
Operating Pressure:
Max. 6.0 Bar
Product Name:
Transfer Die Stamping
Material:
Aluminum / Steel
Masse:
0.44 Kg
Air Ports:
G 1 / 4
Clamping Force:
650.0 N (at 5 Bar)
Operating Pressure:
Max. 6.0 Bar
Pneumatic Air Power Press Tooling , Fitted Sheet Grippers 5 Million Cycles

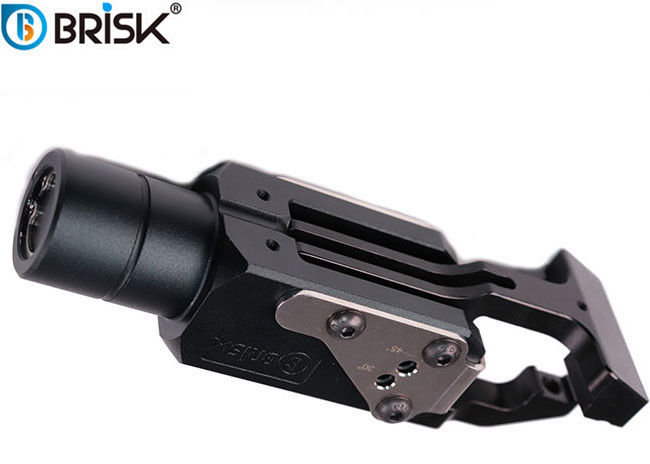

Pneumatic Air Transfer Die Stamping For Transfer Press Tooling



Pneumatic air transfer die stamping for transfer press tooling is run on compressed air and have the ability to pick up, place, hold and release objects while an action is being executed. Modular design could save assembly hours. Long life cycle, best price and flexible industrial assembly make Brisk grippers the best one available. Transfer die stamping could save assembly hours.





 Item No.   Transfer die stamping
 Features    5 million cycles
 Sensor position available
 Modular structure
 High clamping force
 Easy adjustment
 Fast opening & closing action
 Self-locking structure for clamping
 Applications  Holding, removing and transporting of metal sheets and other products, mainly in transfer die  stamping.





Advantages



Pneumatic Air Transfer Die Stamping For Transfer Press Tooling​



Brisk concentrate on - Transfer die stamping Pneumatic Air Power Press Tooling , Fitted Sheet Grippers 5 Million Cycles 0
5 million times strict testing for grippers and high security operating
the most cost-effective-30% saving at least
3-7 days delivery on most products
96 kinds of standard models of transfer die stamping
190 kinds of standard models of adapters
20 new products per year
Customized solutions
