Product Details
Place of Origin: Nanjing City, China
Brand Name: BRISK
Model Number: BSK Sheet Metal Grippers
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Strong carbon box, wooden cases. According to your requirements.
Delivery Time: 2-10 days
Payment Terms: T/T, L/C, , MoneyGram
Supply Ability: 300 + Piece + per Months
Product Name: |
Sheet Metal Gripper |
Material: |
Aluminum / Steel |
Masse: |
0.44 Kg |
Air Ports: |
G 1 / 4 |
Clamping Force: |
650.0 N (at 5 Bar) |
Operating Pressure: |
Max. 6.0 Bar |
Product Name: |
Sheet Metal Gripper |
Material: |
Aluminum / Steel |
Masse: |
0.44 Kg |
Air Ports: |
G 1 / 4 |
Clamping Force: |
650.0 N (at 5 Bar) |
Operating Pressure: |
Max. 6.0 Bar |

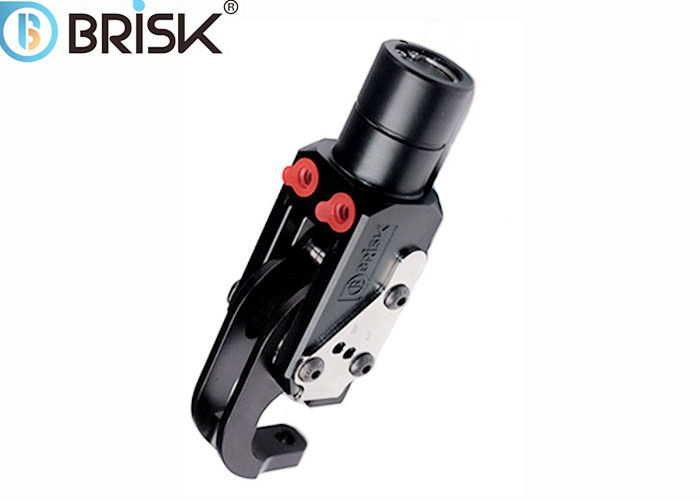

Customized double acting sheet metal gripper operated on transfer die is run on compressed air and have the ability to pick up, place, hold and release objects while an action is being executed. Modular design could save assembly hours. Long life cycle, best price and flexible industrial assembly make Brisk grippers the best one available. Modular design could save assembly hours.
| Gripper Name | Customized sheet metal grippers |
| Features | Modular structure |
| Easy adjustment | |
| 5 million cycles | |
| High clamping force | |
| Sensor position available | |
| Fast opening & closing action | |
| Self-locking structure for clamping | |
| Applications | Holding, removing and transporting of metal sheets and other sheet metal grippers, mainly on transfer die. |
Advantages
Customized Double Acting Sheet Metal Gripper Operated On Transfer Die
| Brisk concentrate on kinds of sheet metal gripper | |
| 5 million times strict testing for sheet metal gripper | |
| the most cost-effective-30% saving at least | |
| 20 new products per year | |
| 96 kinds of standard models of sheet metal grippers | |
| 190 kinds of standard models of adapters | |
| 3-7 days delivery on most grippers | |
| Customized solutions |
